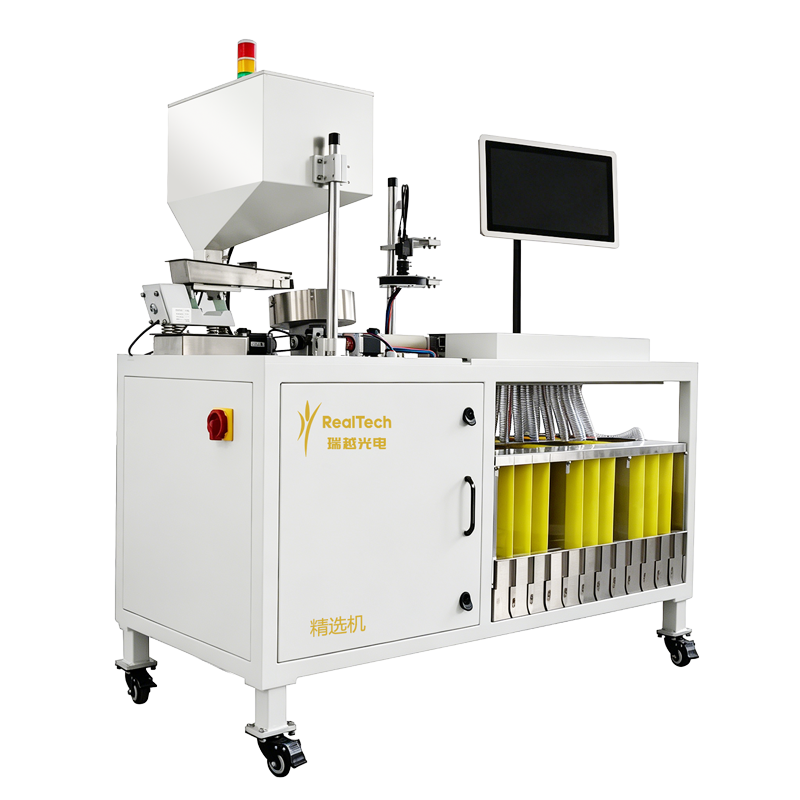

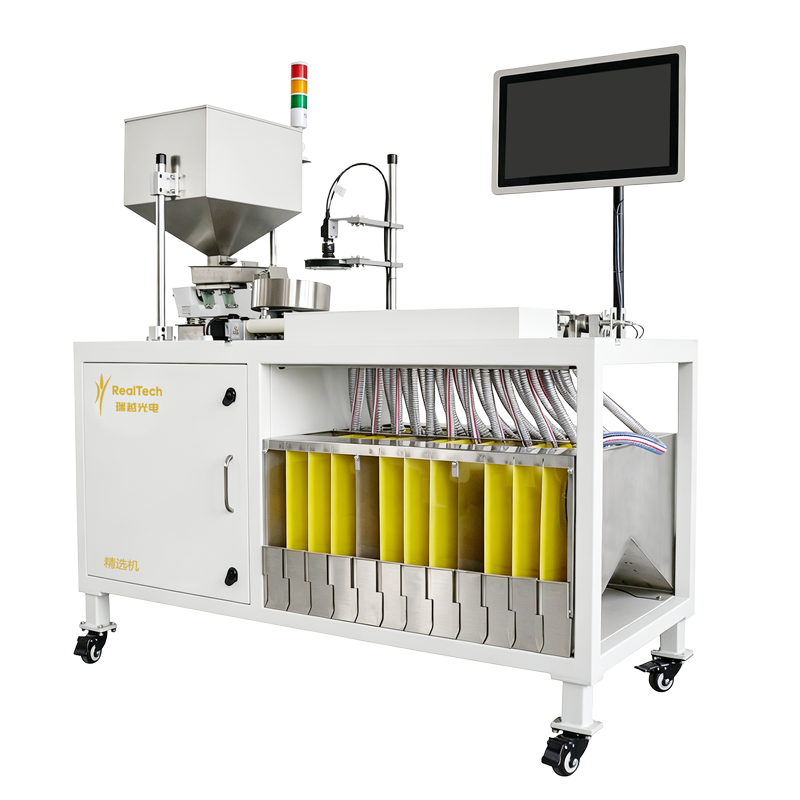

AI Deep Learning Spherical Material Sorter – Solving Industry Sorting Challenges

• Eliminate the inefficiency and errors of manual inspection with our 24/7 automated jewelry sorting solution.
• One machine replaces up to 10 workers—and outperforms them on precision.
• It supports multi-category output for single-pass, multi-level grading, and adapts effortlessly to various spherical sizes and materials.

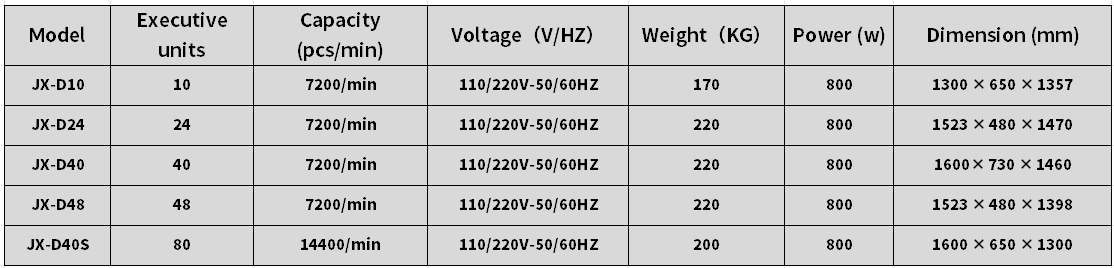

Parameters of AI Precision Sorting Machine

Features of AI Precision Sorting Machine

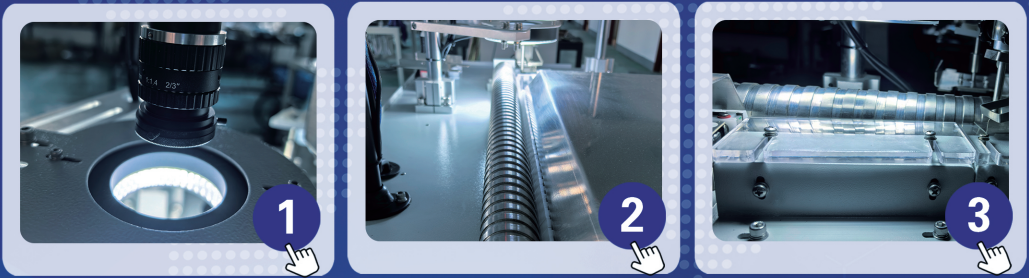

• ✅High-resolution imaging via Hikvision cameras, combined with NVIDIA RTX 3060 GPU, delivers superior image processing performance.
• ✅ Driven by an Intel Core i7 processor and a US-made ARM motherboard, paired with the stable 64-bit Windows 10 OS, for fast, accurate calculations.
• ✅ Equipped with a 1TB solid-state drive (SSD), ensuring massive storage capacity and rock-solid operational reliability.
• ✅ Features a long-life electromagnetic actuator (5-billion-cycle lifespan), a 24V stepper motor, and precision rollers for high-accuracy sorting.
• ✅ Easy-to-use 18-inch Ultra-HD HMI touchscreen, offering real-time system status updates and seamless interactive control.
• ✅ Fully automated self-learning algorithm ensures the machine adapts and sorts intelligently without manual intervention.
• ✅ Easily switch between multiple pre-stored sorting models with a single click, boosting efficiency and simplicity.
• ✅ Detects and removes tiny flaws as small as 0.01mm², far beyond the limits of the human eye, with pinpoint accuracy.

Jewelry Grading Solution

Captures 10-30 images per single shot and sorts 10,000 to 100,000 items per hour. With intelligent full-area recognition, it ensures precise classification with zero blind spots, efficiently delivering material grading and size sorting.
